ASUS ROG STRIX B350-F GAMING

ASUS ROG STRIX B350-F GAMING

ASUS ROG STRIX B350-F GAMING AMD AM4 B350 ATX gaming motherboard with Aura Sync RGB LED, DDR4 3200MHz, M.2, SATA 6Gbps and USB 3.1

Package Content: User's manual 4 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 xM.2 Key E screw package(s) 1 x M.2 Rubber Package(s) 1 x ROG audio USB Type-C® cable


Length (cm): 31 | Width (cm): 25 | Height (cm): 10 | Weight (kg): 2

Specification

Model Name: ASUS ROG STRIX B350-F GAMING
Brand: Asus
CPU: AMD AM4 Socket for AMD Ryzen/7th Generation A-series/AthlonProcessors
Chipset: AMD B350
Memory: 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
Graphics: Integrated AMD Radeonâ„¢ R Series Graphics in the 7th Generation A-Series APU, Multi-VGA output support : HDMI/DisplayPort ports, Maximum shared memory of 2048 MB (for iGPU exclusively)
Expansion: 1 x PCIe 2.0 x16 (max at x4 mode) *1, 3 x PCIe 2.0 x1
Storage: 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN: IntelI211-AT, 1 x Gigabit LAN Controller(s), Anti-surge LANGuard, ROG GameFirst Technology
Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Internal I/O Ports: 2 x RGB Header(s), 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x TPM connector(s), 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector

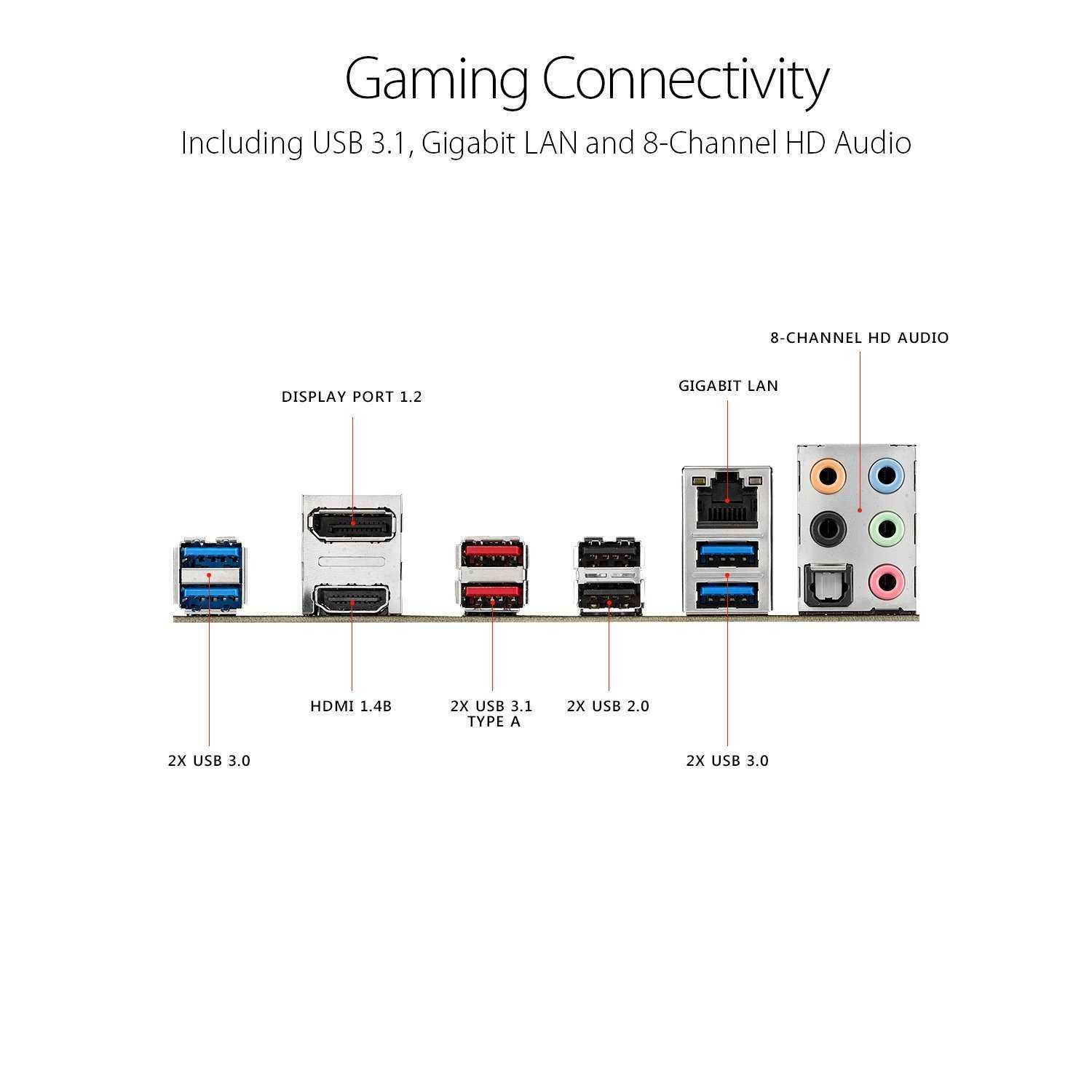

Back I/O Ports: 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 , 2 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s)
Wifi: N/A
OS: Windows10 64-bit
Form Factor: ATX Form Factor
