Tech Specification
AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system
New-Gen WiFi Standard – WiFi 6(802.11ax) standard supporting
MU-MIMO and OFDMA technology for better efficiency and throughput.
Ultra-fast WiFi Speed – RT-AX1800HP supports 1024-QAM for
dramatically faster wireless connections. With a total networking
speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201
Mbps on the 5GHz band.
Increase Capacity and Efficiency – Supporting not only MU-MIMO
but also, OFDMA technique to efficiently allocate channels,
communicate with multiple devices simultaneously
Protection for Your Home Network – Aiprotection powered by Trend
Micro™, blocks internet security threats for all your connected
smart devices.
Better Partner with Mesh System- Compatible with ASUS AiMesh WiFi
system for seamless whole-home coverage.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
- Product specifications may differ from country to country. We recommend that you check with your local dealers for the specifications of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photography and monitor settings. Due to photographic variables and conditions, actual product appearance may differ from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
*ASUS will not be responsible for customer induced damage to the product, or to user-added materials applied to the product.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
- Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
- Quoted network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.
Specifications:
| Model Name: | RT-AX1800HP |
| Network Standard: | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| AX technology: | Yes |
| Data Rate: | 802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps WiFi 4 (802.11n): up to 300 Mbps WiFi 5 (802.11ac): up to 867 Mbps WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps WiFi 6 (802.11ax) (5GHz): up to 1201 Mbps |
| Antenna: | External antenna x 4 |
| Transmit/Receive: | 2.4GHz 2x2 5GHz 2x2 |
| Processor: | Dual - core (4 VPE) |
| Memory: | 128 MB Flash 256 MB RAM |
| Boosts speed: | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
| Operating Frequency: | 2.4G Hz / 5 GHz |

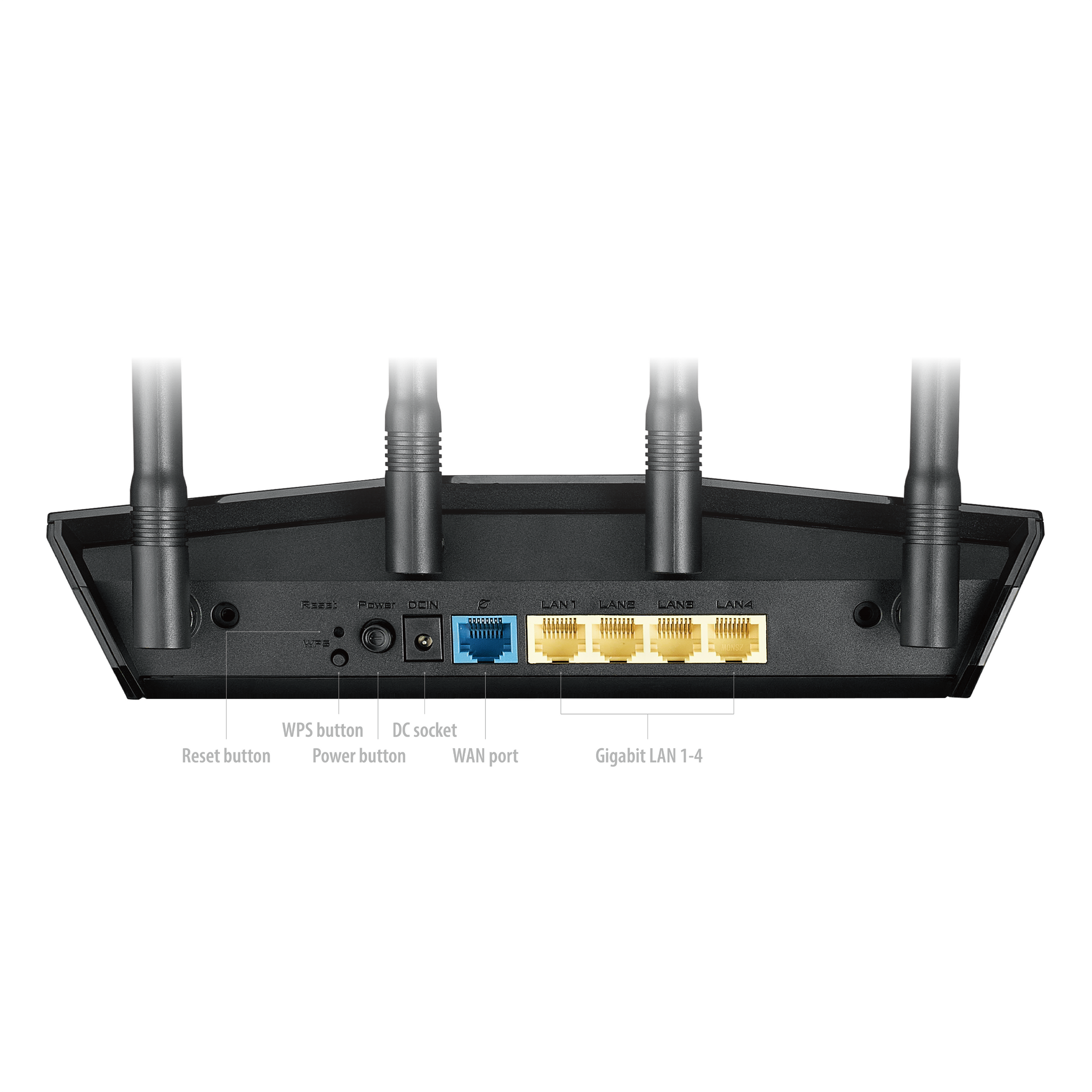

| Ports: | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 |
| Button: | WPS Button, Reset Button, Power Switch |
| LED Indicator: | Power x 1 2.4G x 1 5G x 1 LAN x 1 WAN x 1 |
| Power Supply: | AC Input: 100V~240V(50~60Hz) DC Output: 12 V with max. 1.5A current |
| Package content: | RT-AX1800HP RJ45 x1 Adapter x1 QSG x1 Warranty Card x1 |
| AiMesh: | AiMesh Primary AiMesh router AiMesh node |
| Router APP: | ASUS Router APP |
| Alexa: | Support Alexa skill |
| AiProtection: | AiProtection Classic Malicious site blocking Infected Device Prevention and Blocking |
| Parental Control: | Parental Control Parental Control Customized Internet schedule |
| Traffic Control: | Bandwidth limiter Traditional QoS Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor |
| Wireless: | IPv6 Wi-Fi Encryption: Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal UTF-8 SSID Guest Network WPS WiFi MAC address filter Wireless scheduler Airtime fairness RADIUS Server Universal beamforming Explicit beamforming |
| WAN: | Internet connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN Port forwarding DMZ DDNS Let's Encrypt |
| LAN: | DHCP Server IPTV Manually assign IP address |
| VPN: | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP |
| Administration: | Operating mode: Access Point, Media Bridge, Repeater, Router Operating system: ASUSWRT Free OS upgrade Firewall SSH Wake on LAN (WOL) Configuration backup and restore Diagnosis tools Feedback system System log |
