DLINK R15 EAGLE PRO AI AX1500 WI-FI 6 AI

Technical Specifications Technical Specifications / R15

D-Link (Europe) Ltd., First Floor, Artemis Building, Odyssey Business Park,

West End Road, South Ruislip HA4 6QE, United Kingdom.

Specifications are subject to change without notice. © 2021 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks

or registered trademarks of D-Link. All other third-party marks mentioned herein may be trademarks of their respective owners.

General

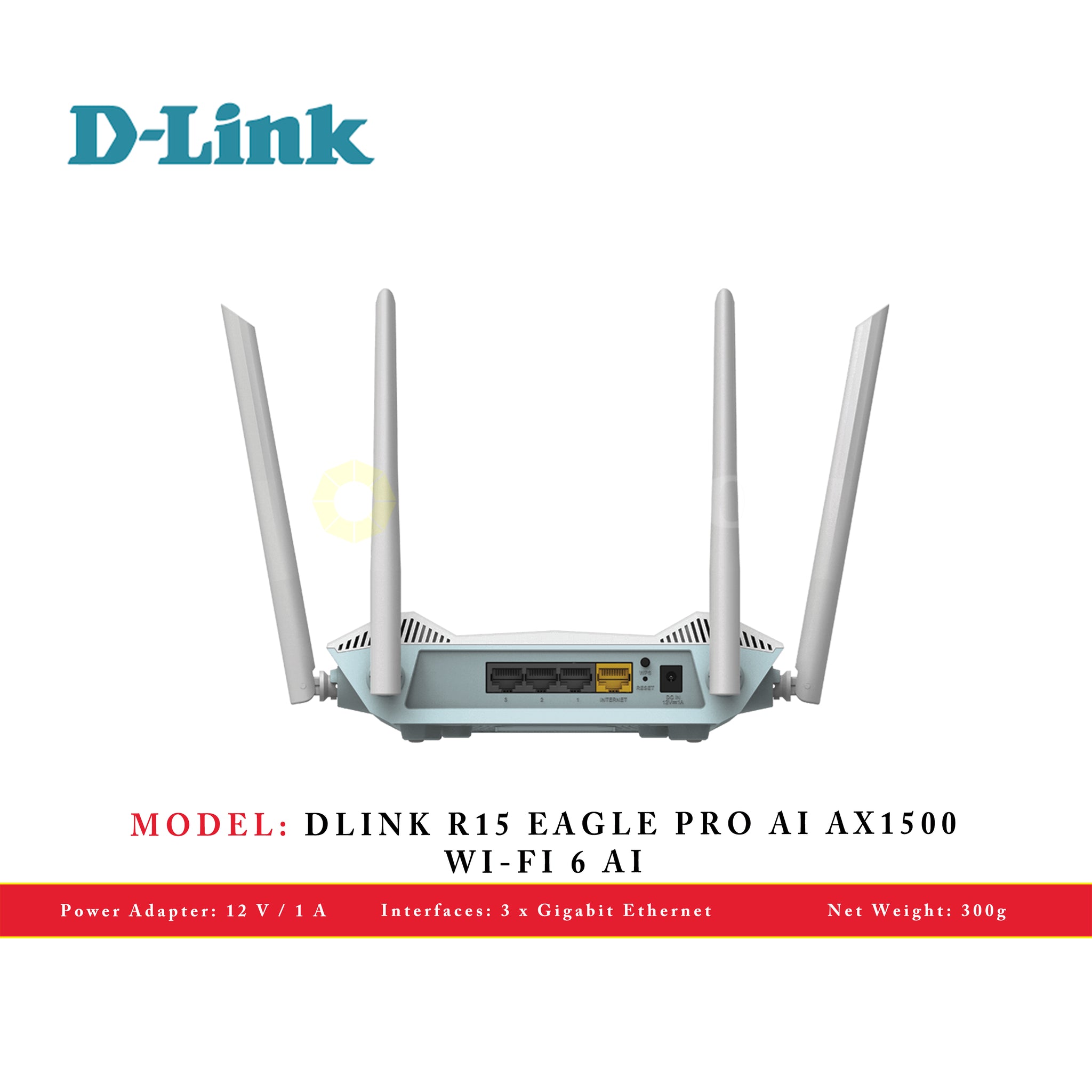

Device Interfaces 3 x Gigabit Ethernet LAN ports, 1 x Gigabit Ethernet WAN port, 1 x WPS button, 1 x power connector

LED Power, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi

Antenna Type Four external antennas

Wi-Fi Data Rate2 2.4 GHz (up to 300 Mbps), 5 GHz (up to 1201 Mbps)

IEEE Standard IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab

Minimum Requirements Windows 10/8.1/8/7/Vista or Mac OS X 10.6 or higher, Supports Internet Explorer 10/Firefox 28.0/Chrome

28.0/Safari 6.0 and up, Network Interface Card, Cable/DSL modem or other ISP

equipment with Ethernet port

Functionality

Security Protocol WPA2 (Wi-Fi Protected Access), WPA3(Wi-Fi Protected Access), WPS (Wi-Fi Protected Setup)

Firewall DoS, Stateful Packet Inspection, Anti-poofing Checking, IP/MAC Address Filtering, 1 x DMZ

Mesh D-Link Wi-Fi Mesh

QoS D-Link Intelligent QoS Technology

Speed Test Ookla SpeedTest

Software

Device Management EAGLE PRO AI app (iOS and Android), Web UI

Voice Assistants Amazon Alexa, Google Assistant

Physical

Dimensions 195 x 139 x 55 mm

Weight 300 g

Power Adapter 12 V / 1 A

Operating Temperature 0 to 40 °C (32 to 104 °F)

Storage Temperature -20 to 65 °C (-4 to 149 °F)

Operating Humidity 10% to 90% non-condensing

Storage Humidity 5% to 95% non-condensing

Certifications CE , FCC, IC
