Tech Specification

|

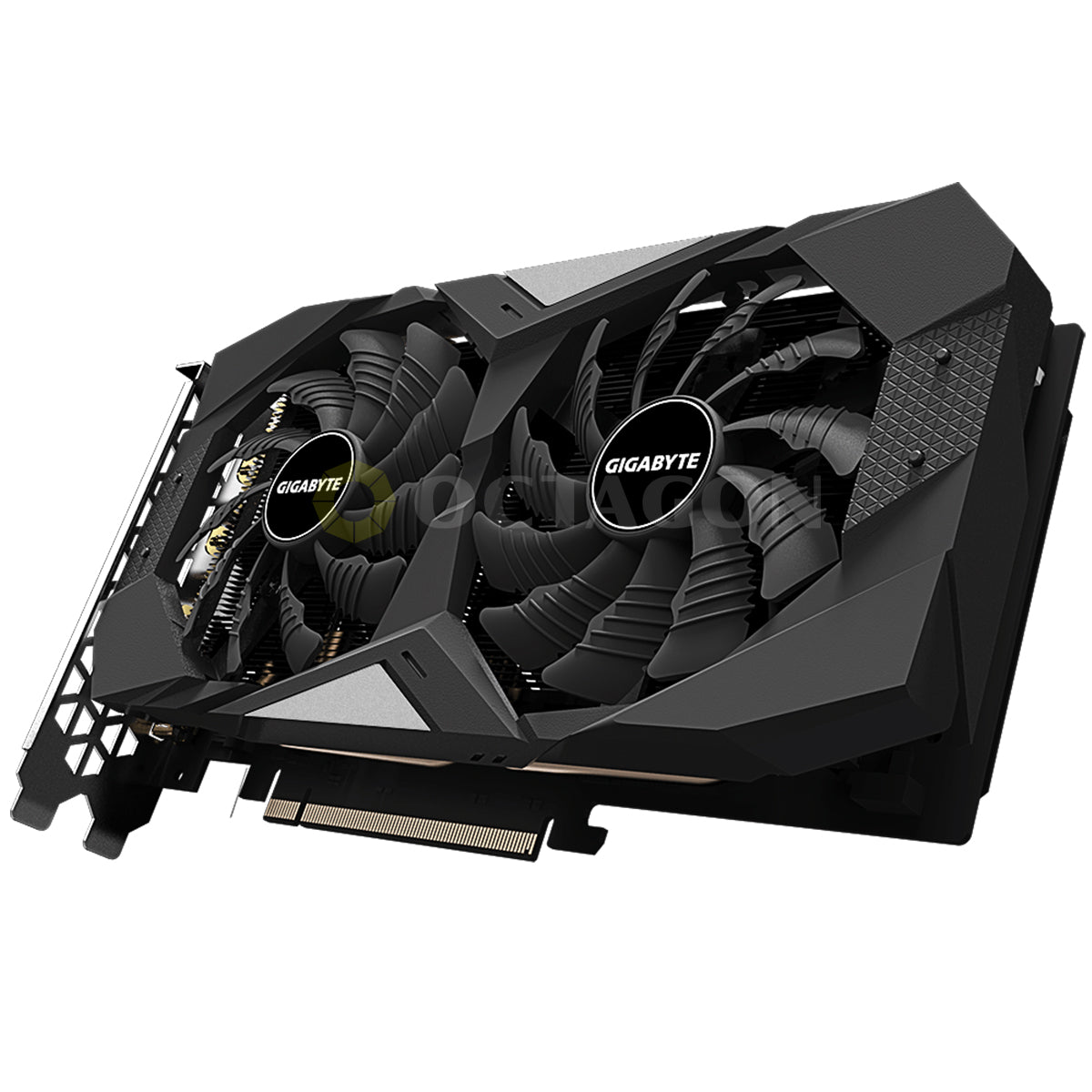

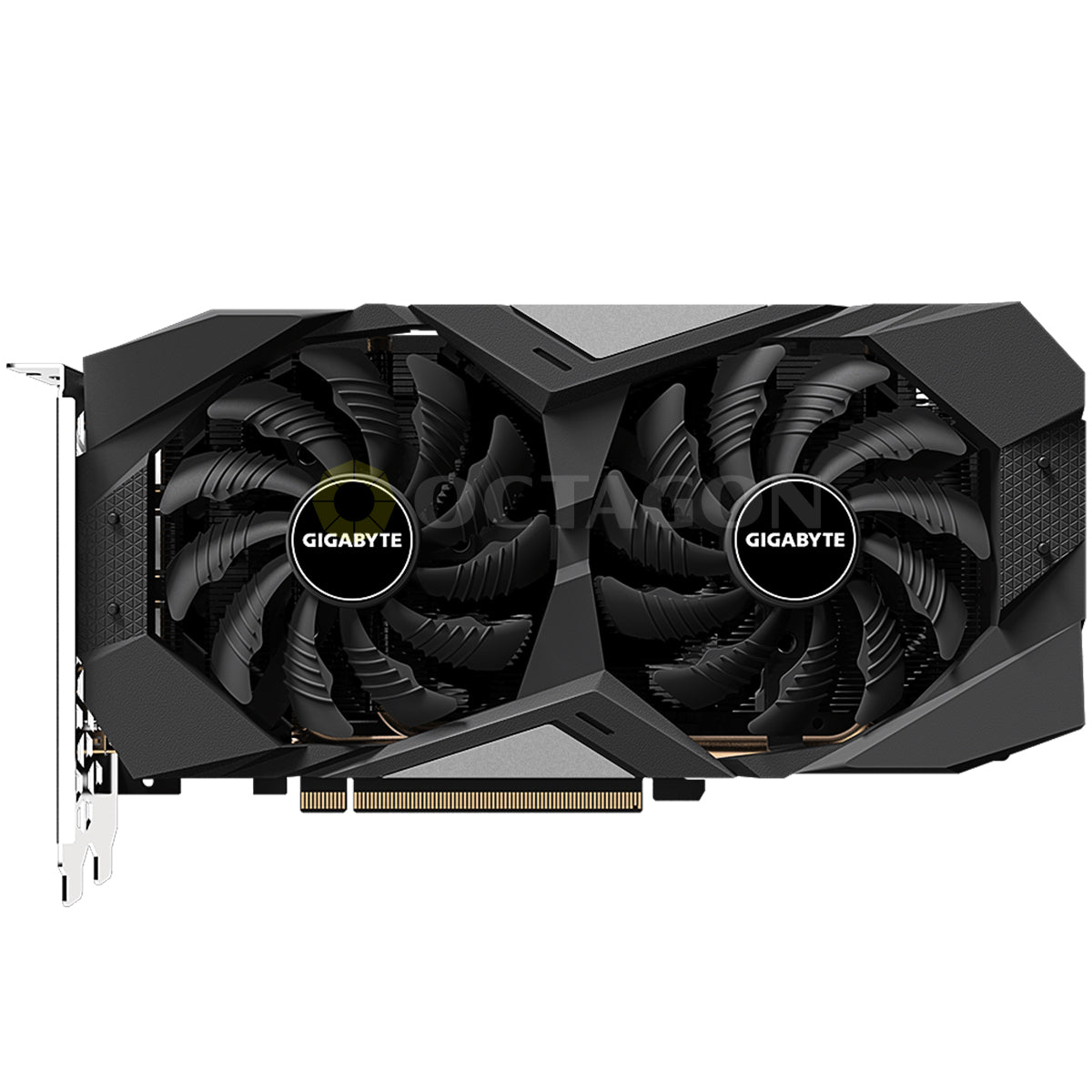

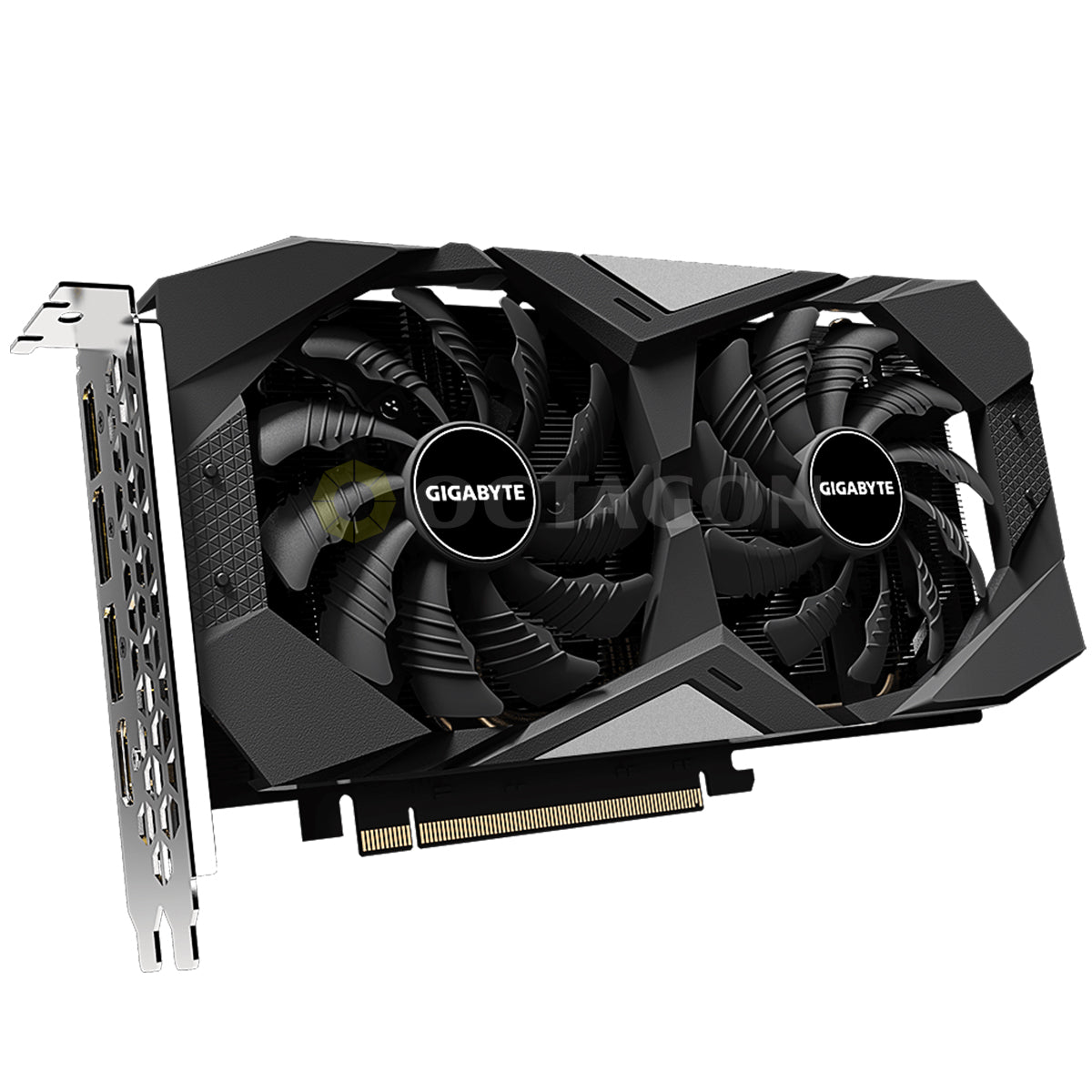

WINDFORCE 2X COOLING SYSTEM The WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 3 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. |

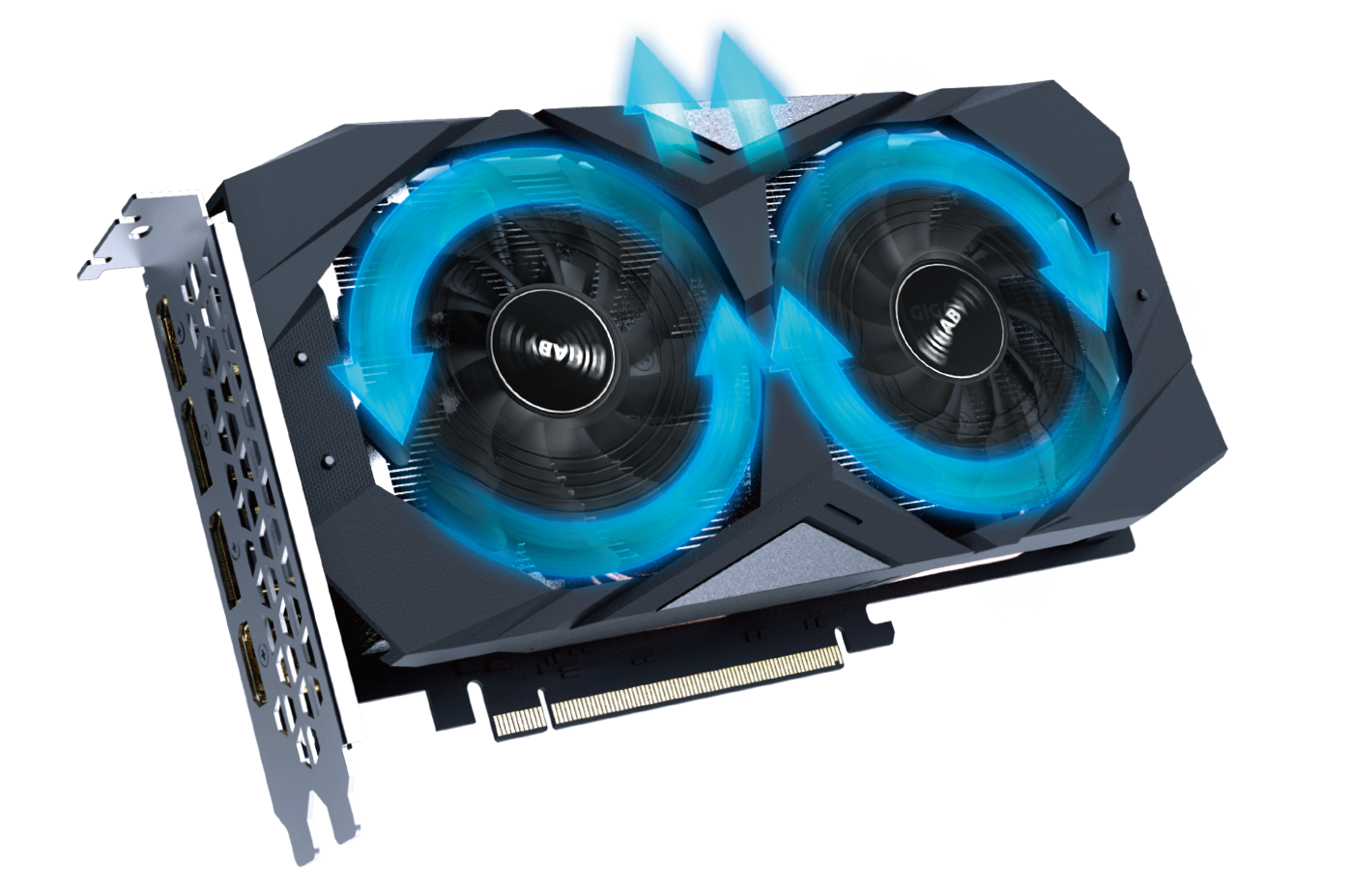

| ALTERNATE SPINNING The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. |
 |
 |
UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. |

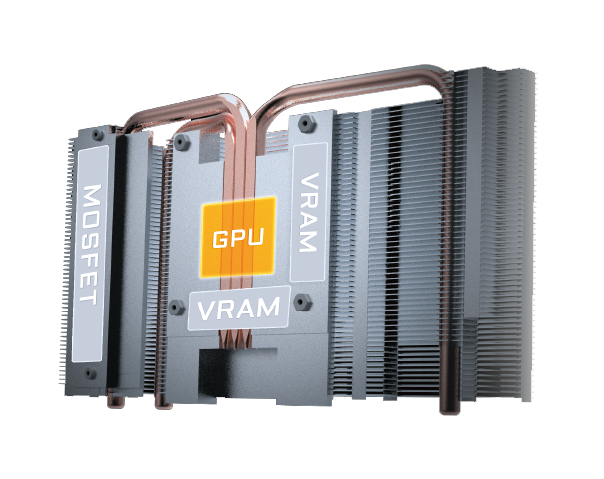

| HEAT PIPES DIRECT TOUCH GPU The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling. |
 |
 |
COMPOSITE HEAT-PIPE The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity. |

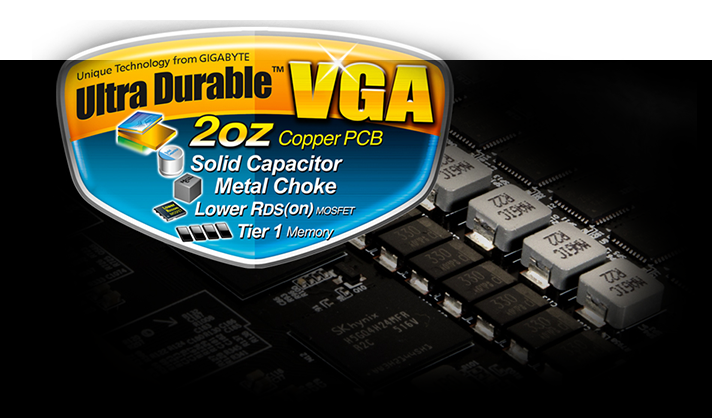

| EXTREME DURABILITY AND OVERCLOCKING The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. |
 |
 |
FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. |
| PCI-E 4.0 SUPPORT Gigabyte Radeon RX 5500 XT OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming. |
 |
 |

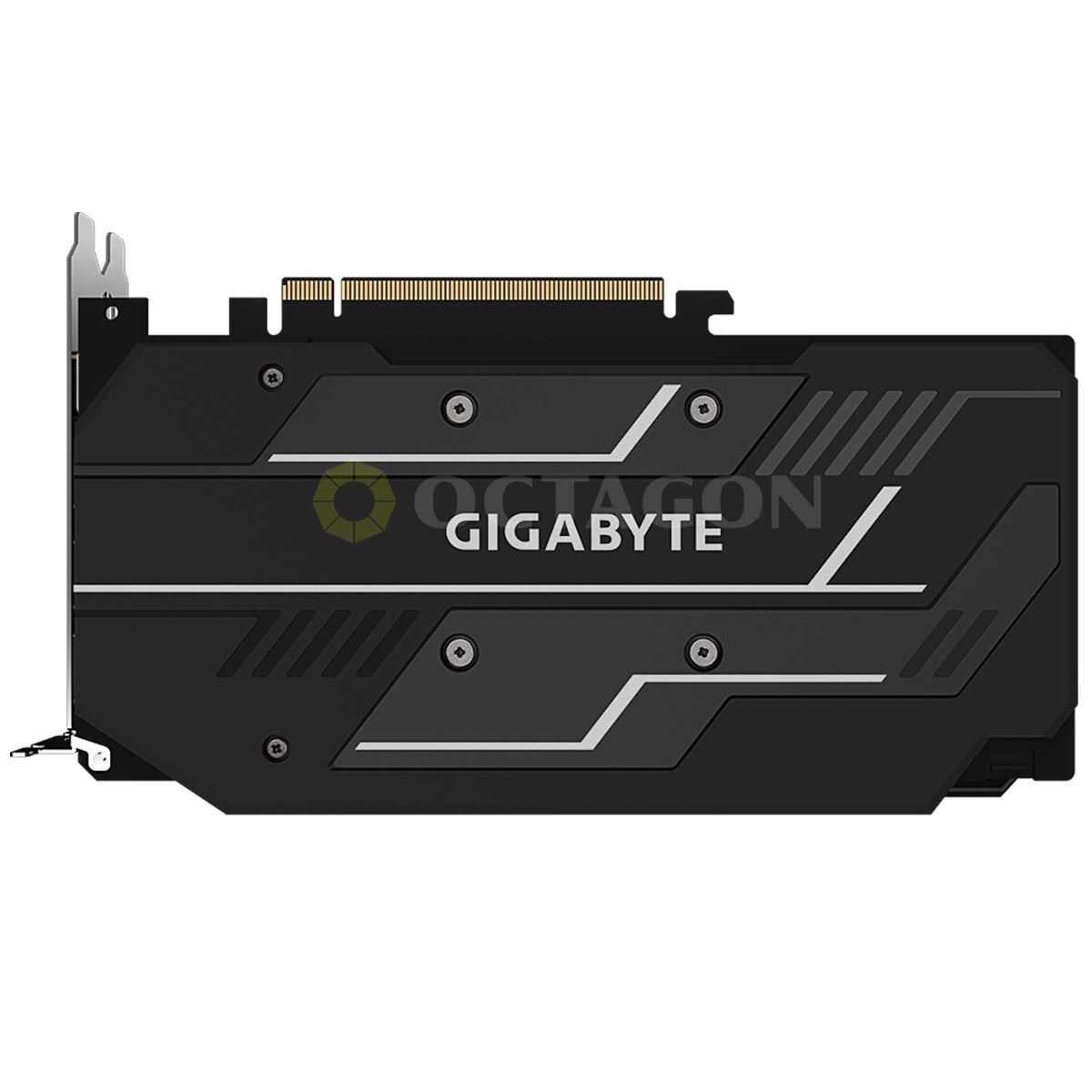

PROTECTION BACK PLATE The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. |
|
IN TOTAL COMMAND The interface and functionality of the software is subject to each model. |
 |
Specification
| Model Name: | GIGABYTE RADEON 5500XT OC 8G |
| Brand: | Gigabyte |
| Color: | Black |
| Graphics Processing: | Radeon™ RX 5500 XT |
| Core Clock: Boost Clock : | up to 1845 MHz | Game Clock* : 1733 MHz (Reference card: 1717 MHz) |
| Stream Processors: | 1408 |
| Process Technology: | 7 nm |
| Memory Clock: | 14000 MHz |
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Bus: | 128 bit |
| Memory Bandwidth (GB/sec): | 224 GB/s |
| Card Bus: | PCI-E 4.0 |
| Digital max resolution: | 7680x4320@60Hz |
| Multi-view: | 4 |
| Card size: | L=225 W=119 H=40 mm |
| PCB Form: | ATX |
| DirectX: | 12 |
| OpenGL: | 4.6 |
| Recommended PSU: | 450W |
| Power Connectors: | 8 Pin*1 |

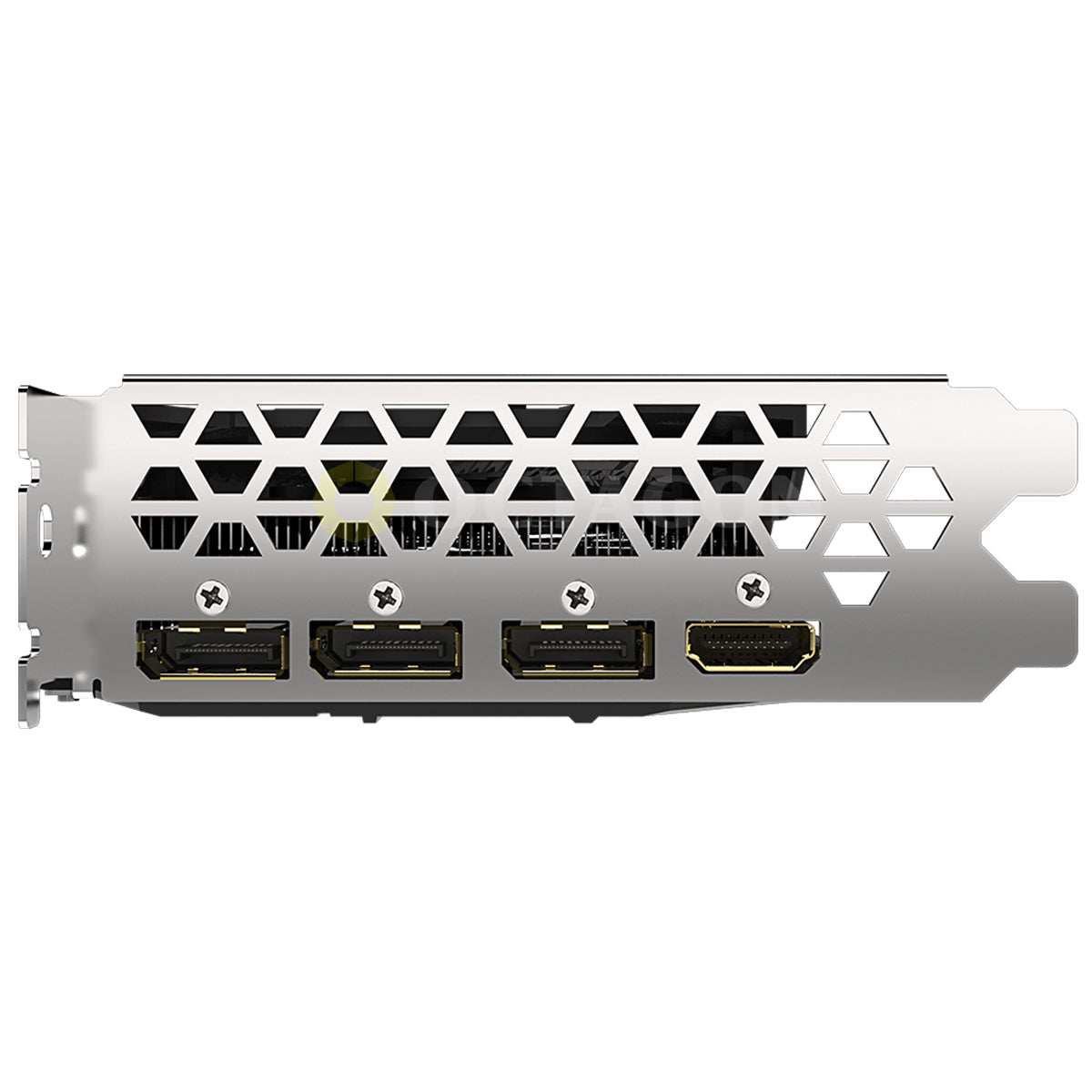

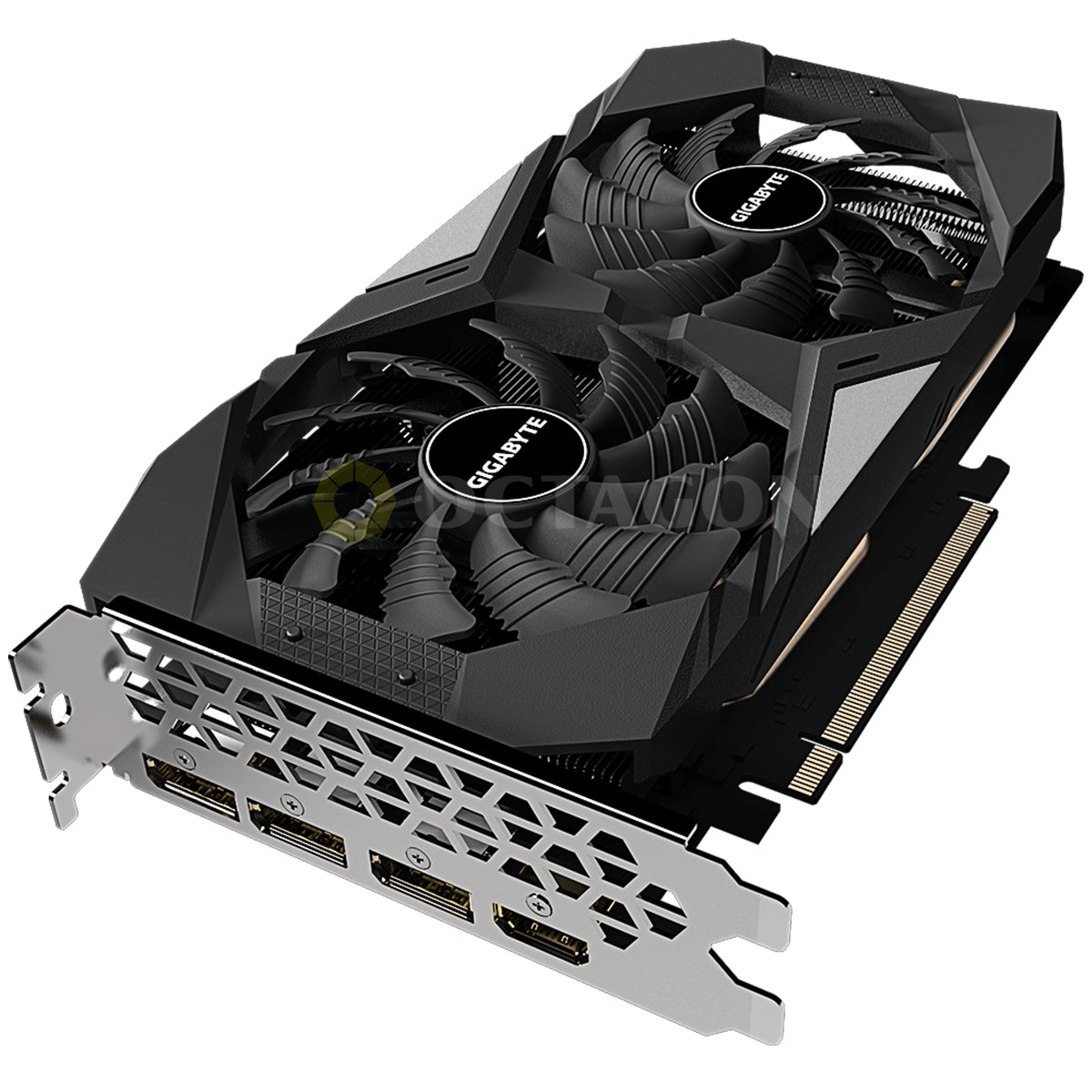

| Output: | DisplayPort 1.4 *3 | HDMI 2.0b *1 |
| Accessories: | Quick Guide |
