Tech Specification

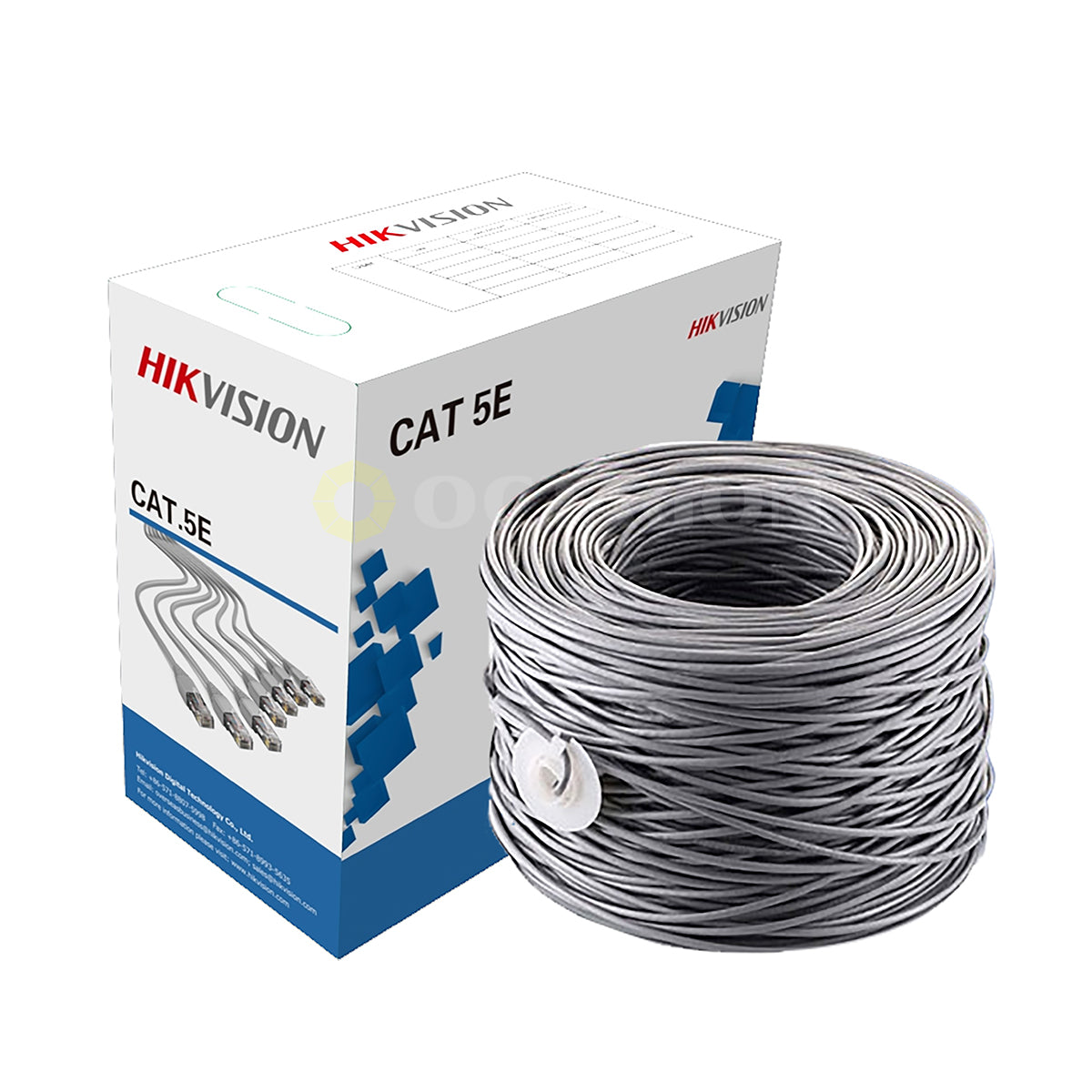

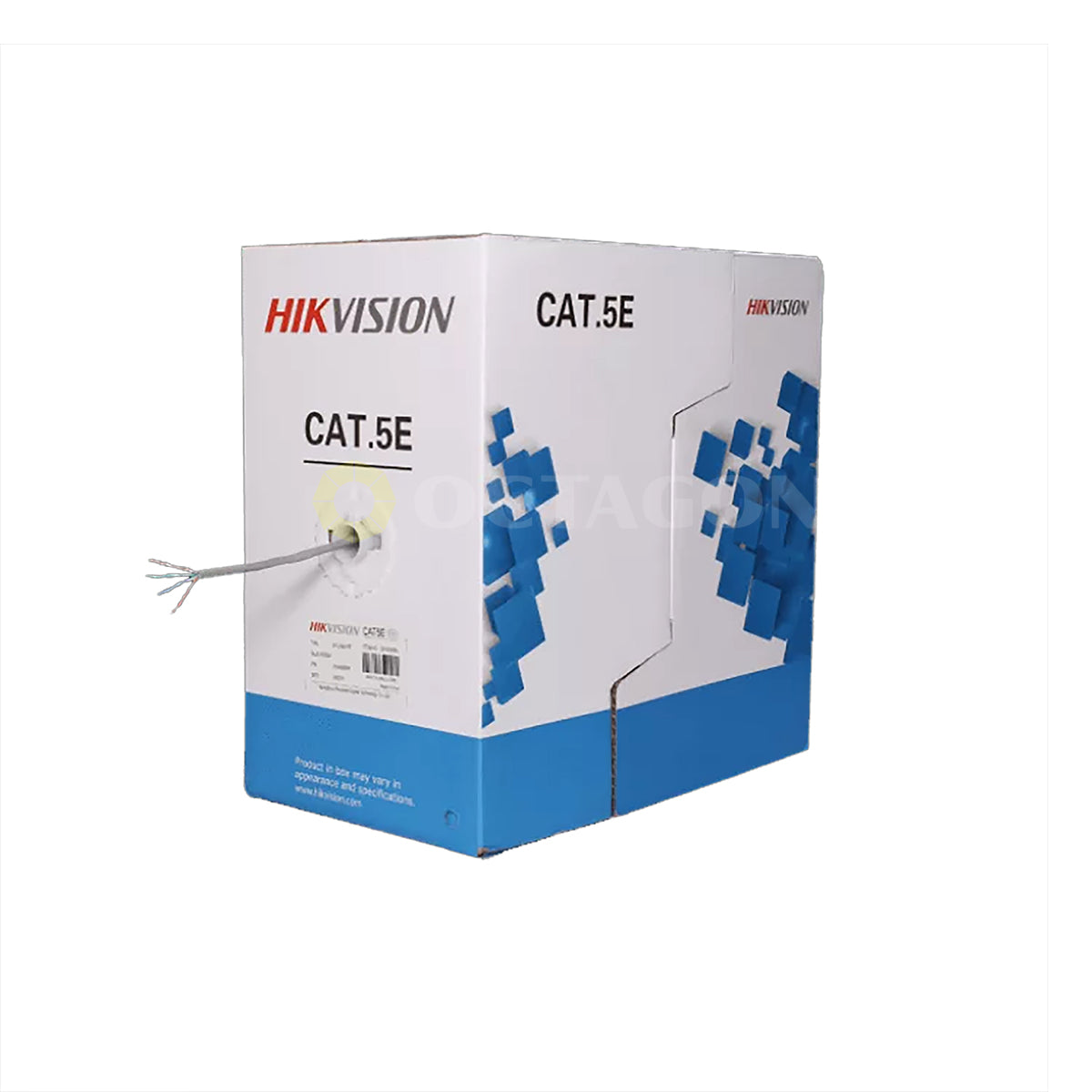

HIKVISION DS-1LN5E-E/E
305 m CAT5E UTP Network Cable (Solid Copper, 0.45 mm, CMX)

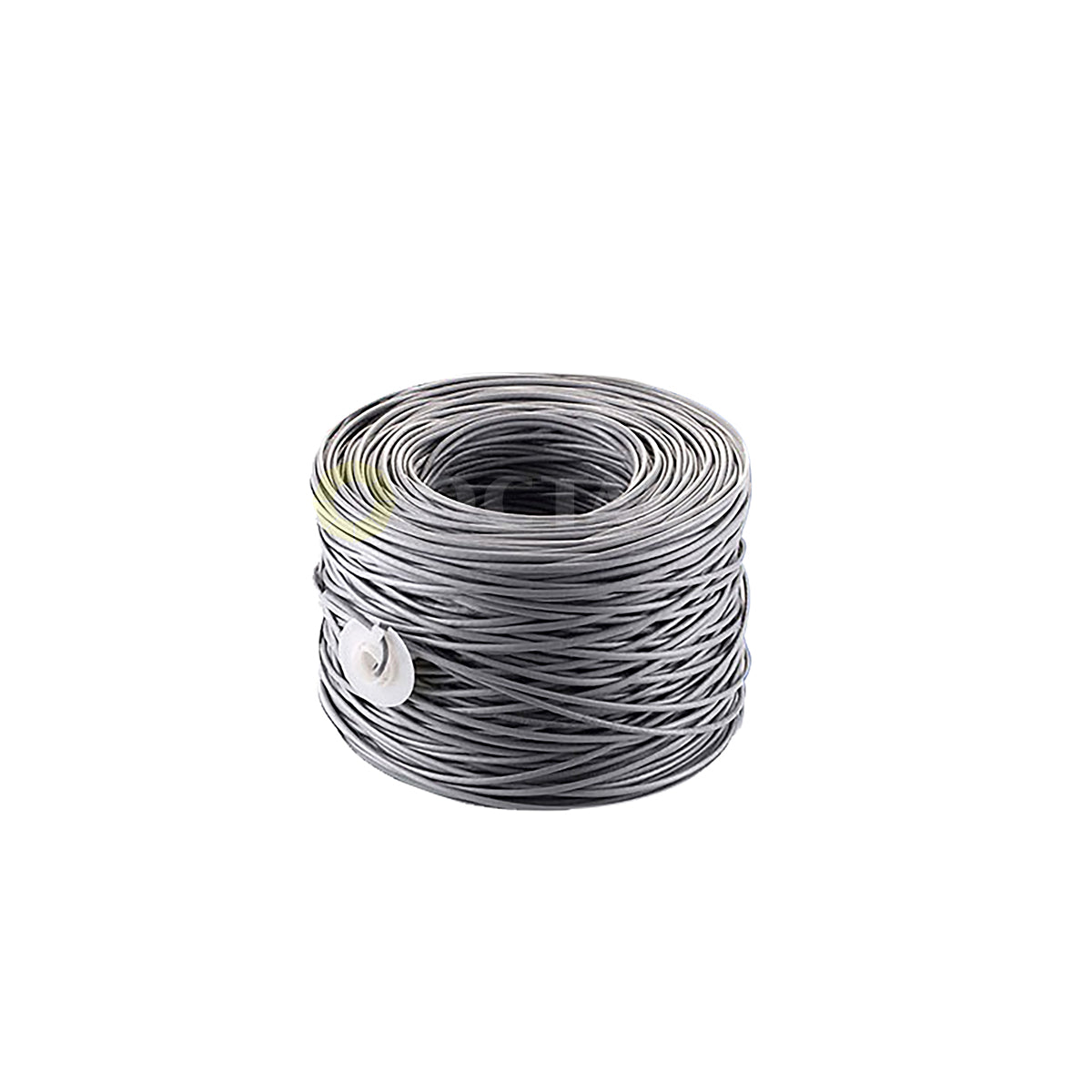

Full diameter 305 m CAT5E network cable
Excellent transmission performance using oxygen-free copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance
Specification
| Model Name: | HIKVISION DS-1LN5E-E/E CAT5E 305M/1000FT |
| Brand: | Hikvision |
| General | |

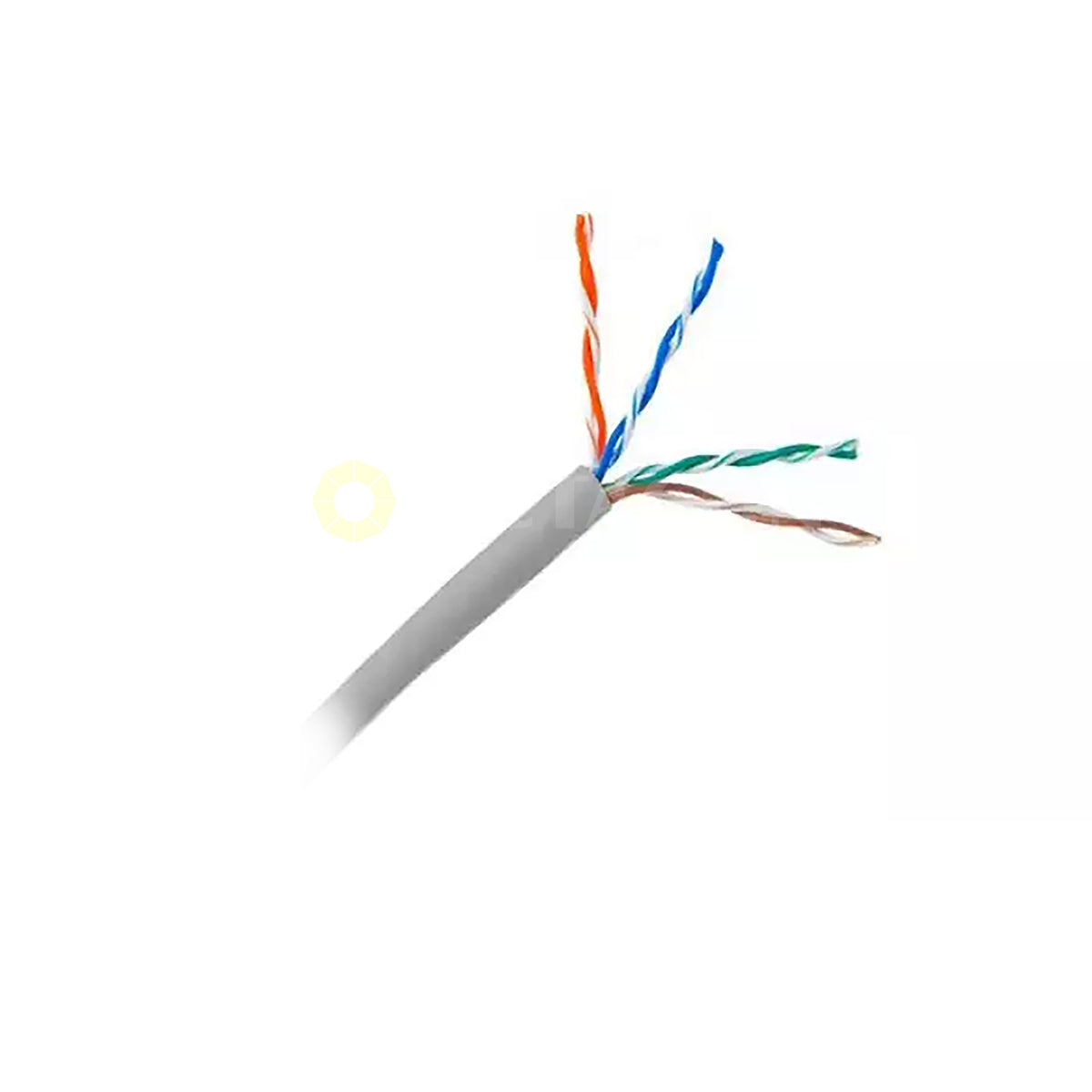

| Core Color: | 1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown, |

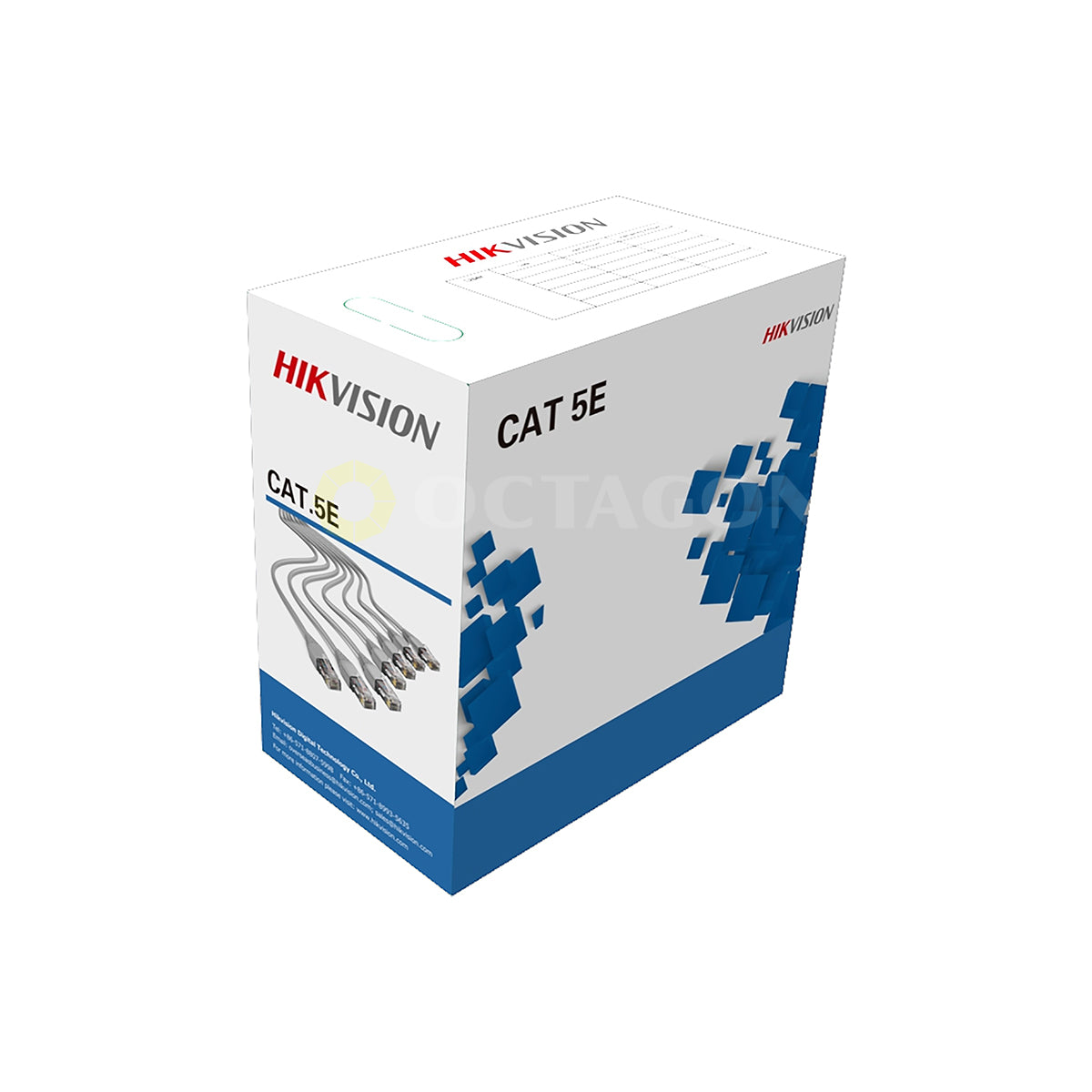

| Packing: | Wooden Tray & Carton |
| Carton Dimension: | Per request |
| Packing Length: | 305±1.5m/80±0.5m |
| Rip-Cord: | Yes |
| Drain Wire: | No |
| Sheath Physical Properties: | Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks, Electrical Characteristics (20℃) 1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0, |
| Conductor | |
| Material: | Solid-Bare Copper,Content 99.95%, |
| Nom.O.D.(Mm): | 0.450±0.005 |
| Insulation | |
| Material: | HDPE |
| Diameter: | 0.82±0.04mm |
| Sheath | |
| Thickness: | 0.50±0.05 mm |
| External O.D.: | 4.7±0.4 mm |
| Surface: | Clean,Frap,Satiation |
| Material: | PVC(complies RoHS),CMX |
| Color: | Grey ZLC1003 |
| Surface Printing | |
| Letter Height: | 3.0±0.3mm |
| Color: | Black |
| Print Error & Space: | ≤±0.5%，1m |
