Tech Specification
Archer AX10
AX1500 Wi-Fi 6 Router
Wi-Fi 6 Technology—Archer AX10 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).
Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO.
Triple-Core CPU—Instant response to all your network activity with a 1.5 GHz triple-core CPU.
Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.
Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.
Easy Setup—Finish your network upgrade in minutes with Tether app.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and the number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡ Use of 802.11ax (Wi-Fi 6), and features including OFDMA, 1024-QAM, and BSS Color requires clients to also support those features.
§ 1000 Mbps internet speeds require compatible service plans and equipment.
Specifications
| WIRELESS | |
| Standards: | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds: | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range: | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
|
WiFi Capacity: |
High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes: | Router Mode Access Point Mode |
| HARDWARE | |
| Processor: | 1.5 GHz Triple-Core CPU |

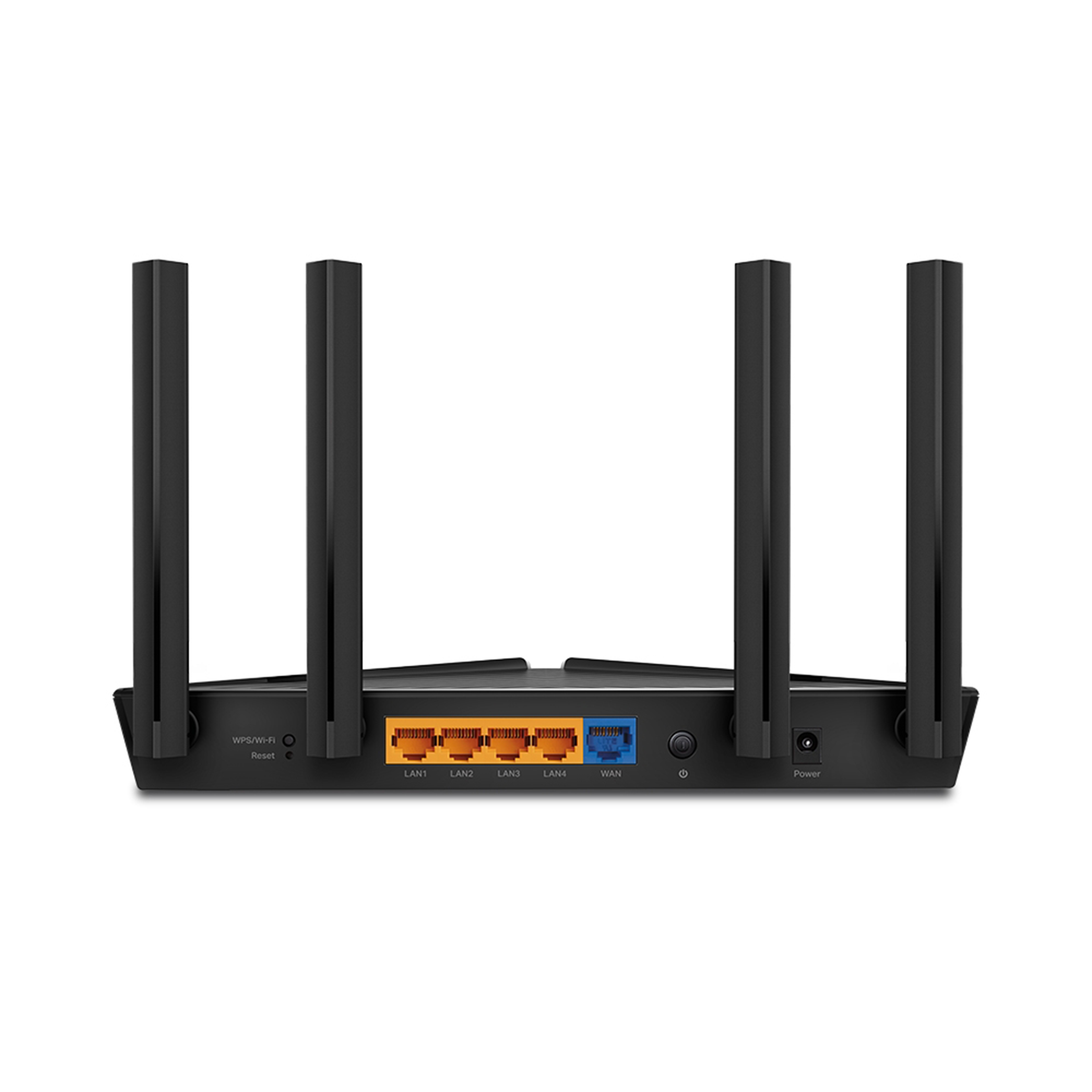

| Ethernet Ports: | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons: | WPS/Wi-Fi Button Power On/Off Button LED On/Off Button Reset Button |
| Power: | 12 V ⎓ 1 A |
| SECURITY | |
| WiFi Encryption: | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security: | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network: | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server: | OpenVPN PPTP |
| SOFTWARE | |
| Protocols: | IPv4 IPv6 |
| OneMesh™: | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls: | URL Filtering Time Controls |
| WAN Types: | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service: | QoS by Device |
| Cloud Service: | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding: | Port Forwarding Port Triggering DMZ UPnP |
| IPTV: | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP: | Address Reservation DHCP Client List Server |
| DDNS: | TP-Link NO-IP DynDNS |
| Management: | Tether App Webpage |
| PHYSICAL | |
| Dimensions (W×D×H): | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Contents: | Wi-Fi Router Archer AX10 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
| System Requirements: | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications: | FCC, CE, RoHS |
| Environment: | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power: | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity: | 5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm 11n HT40_MCS7:-70dBm |
